-150 yd / 125 t per hour oscillating double screen deck. 10 hp electric drive motor.

-Top deck has The Western Groups WestRail system
Interchangeable 20”/ 500 mm by 12”/ 300 mm polyurethane modules with 1 1⁄2 / 38 mm anti clogging holes covering an area of 50 sq ft / 4.65 sq m
Easy removal and swap-out with click in rails.

-Bottom deck has The Western Groups Westflex system
3 Interchangeable clamp in Poly screens with 3⁄8 / 10 mm anti clogging holes covering area of 50 sq ft / 4.65 sq m

-Dual Mild steel sluice boxes 7’/ 2130 mm by 8’/ 2440 ft
Boiler boxes and boiler bars in top section with easy clean out piping. Foldable for transport around site

-Stainless steel hydraulic riffles for extended wear and corrosion purposes
1⁄8 Stainless mesh screened water system. Uses between 800-1200 gpm / 3000-4500 L Hydraulic riffles all valve controlled from valve bank.
Manual Butterfly valve controlled water bypass.

-36”/ 900 mm by 36’/ 11 m long Stacker conveyor All conveyor components made by Luff industries. Hinged and hung from steel galvanised cable. 40-1 Dodge gearbox with adjustment.

10 hp Weg electric drive motor

-Dump box lined with AR400 1⁄2 plate High sides for spray containment Easily bolted on and off plant

-4 Hydraulic leveling legs
14000 lbs/ 6300 kg lifting capacity per leg
5 hp electric drive motor over 100 gpm/ 380 Lpm hydraulic pump 3’/ 900 mm lift height

-Waterproof electric control panel with overload breakers

-2 extra bolt on skids for sideway pulling

Weight: 21000 Lbs/ 9500 kg

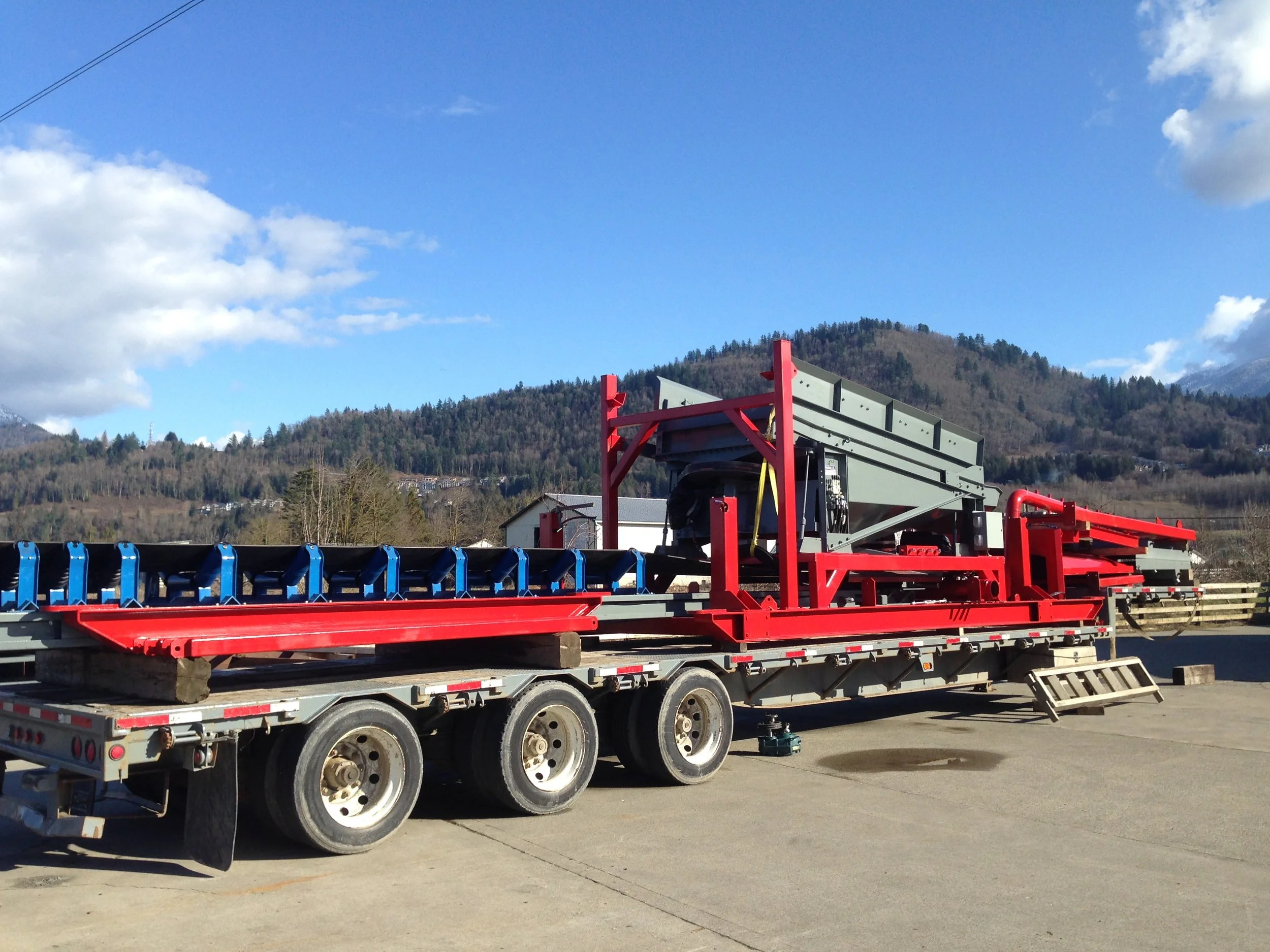

Shipping: Can be broken down to fit in shipping container
Also under Weight/Height/Width restrictions for Highway hauling

Onsite testing completed
